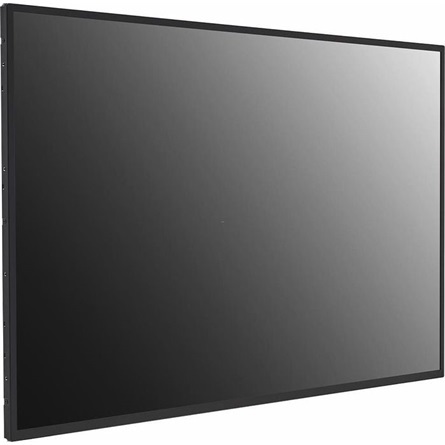

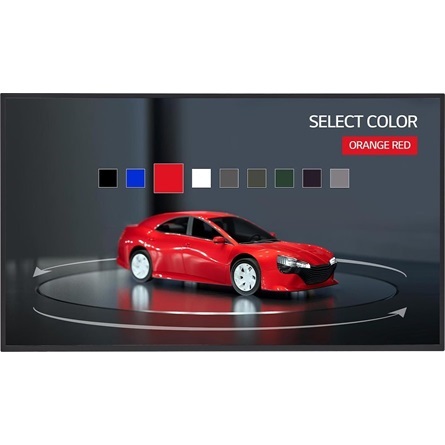

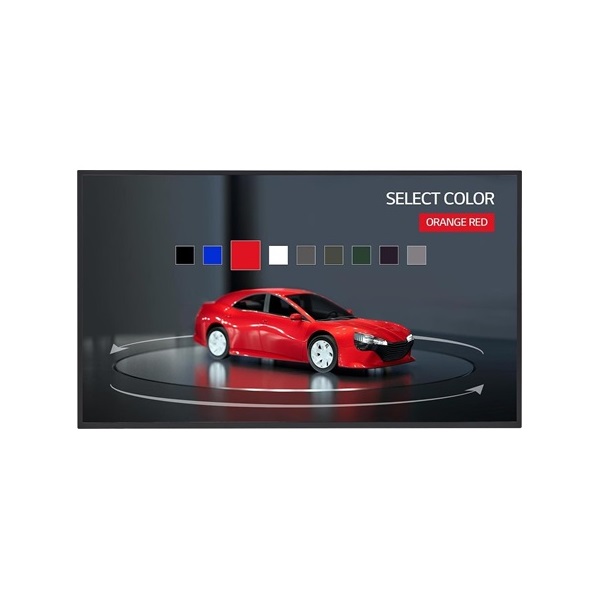

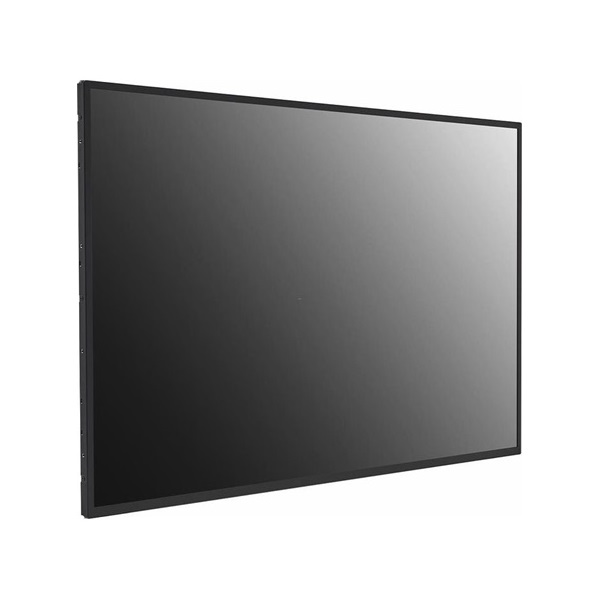

| 55TNF5J |
| Touch Open Frame |
| |
| |
|
|
| |
| Tech Spec |
| |
| Panel |
| |
- Screen Size: 55"
-
Panel Technology: IPS
-
Native Resolution: 3,840 x 2,160 (UHD)
-
Brightness: 450 nit
-
Contrast Ratio: 1,000:1
-
Color gamut: NTSC 72%
-
Viewing Angle (H x V): 178 x 178
-
Color Depth: 10bit, 1.07Billion colors
-
Response Time: 9ms (G to G)
-
Surface Treatment (Haze): Haze 12%
-
Operation Hours (Hours / Days): 24 / 7
-

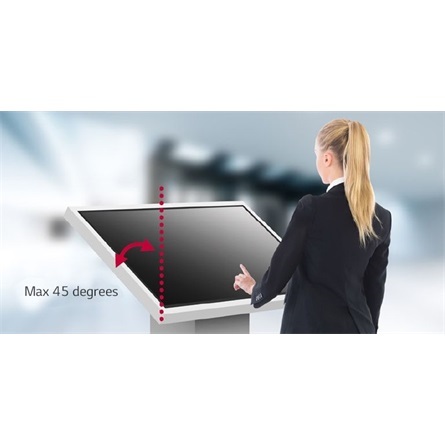

Portrait / Landscape: Yes / Yes
. |
| |
| |
| Mechanical Specification |
| |
- Bezel Color: Black
-
Bezel Width: 9.1 / 9.1 / 9.1 / 16.1 mm
-
Weight (Head): 16.8 kg
-
Monitor Dimensions (W × H × D): 1,231.8 x 709.6 x 39.2 mm
-
VESA™ Standard Mount Interface: 300 x 300
. |
| |
| |
| Key Feature (Hardware) |
| |
- Internal Memory: 8GB (System 5GB + Available 2.48GB)
-
Temperature Sensor: Yes
. |
| |
| |
| Key Feature (Software) |
| |
- webOS ver.: webOS 6.0
-
Embedded CMS: Local Contents Scheduling, Group Manager
-
USB Plug & Play: Yes
-
Fail over: Yes
-
Background Image: Booting Logo Image, No Signal Image
-
Video Tag: Yes
-
Play via URL: Yes
-
Screen Rotation: Yes
-
Gapless Playback: Yes
-
Setting Data Cloning: Yes
-
SNMP: Yes
-
ISM Method: Yes
-
Status Mailing: Yes
-
Control Manager: Yes
-
3rd Party Compatibility: Crestron Inside
-
Power: Smart Energy Saving, PM mode, Wake on LAN, Network Ready
-
HDMI-CEC: Yes
-
SI Server Setting: Yes
-
webRTC: Yes
-
Pro:Idiom: Yes
. |
| |
| |
| Environment Conditions |
| |
- Operation Temperature: 0 °C to 40 °C
-
Operation Humidity: 10% to 80%
. |
| |
| |
| Power |
| |
- Power Supply: AC 100-240V~, 50/60Hz
-
Power Type: Built-In Power
. |
| |
| |
| Power Consumption |
| |
- Typ.: 127 W
-
Max.: 170 W
-
BTU (British Thermal Unit): 433 BTU/Hr (Typ.), 580 BTU/Hr (Max.)
. |
| |
| |
| Standard (Certification) |
| |
- Safety: CB / NTRL
-
EMC: FCC Class "A"/ CE / KC
-
ErP: Yes
. |
| |
| |
| Software Compatibility |
| |
- SuperSign CMS: Yes
-
SuperSign Control / Control+: Yes
-
LG ConnectedCare: Yes
. |
| |
| |
| Connectivity |
| |
- Input: Digital (HDMI(2), HDCP 2.2/1.4), RS232C IN, RJ45(LAN), IR IN, USB2.0 Type A(1)
-
Output: Audio Out, USB2.0 Type B(1)
. |
| |
| |
| Accessory |
| |
- Basic: Power Cord 1.55m, USB Cable (Type A-Type B) 1.8m, User Manual, QSG, Remote Controller(include battery 2ea), RS232C Gender, IR Receiver
. |
| |
| |
| Touch |
| |
- Available Object Size for Touch: 6mm
-
Reponse Time (Based on 'Paint' app on Windows 10 PC): 90ms
-
Accuracy: 3.5mm±0.5mm
-
Interface: USB 2.0
-
Operating System Support: Windows 10
-
Multi Touch Point: Max. 10 Points
. |
| |
